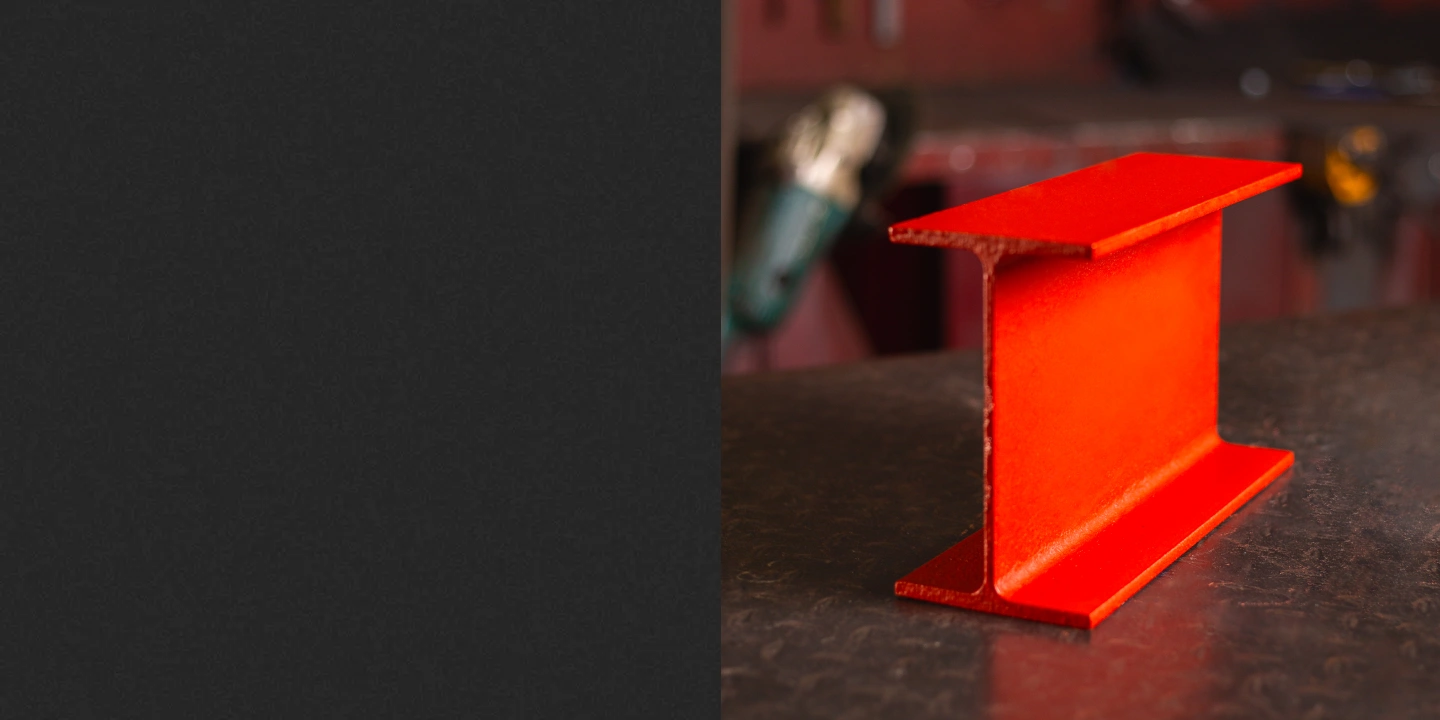

Universal Beam
The increased depth results in higher loading capabilities than UCs, however, there is not always enough space to use a UB. An example is a 203 x 133 UB 30. The first number is the depth of the beam, the second is the width and the last number is the weight (in this case 30) per metre in kilograms. Again, by multiplying the total beam length in metres by the weight per metre we can quickly work out what is the total weight of the beam.
| Type | Weight [kg/m] | Height [mm] | Width [mm] | Web thickess [mm] | Flange thickess [mm] |
|---|---|---|---|---|---|
| 127 x 76 UB 13 | 13 | 127.0 | 76.0 | 4.0 | 7.6 |
| 152 x 89 UB 16 | 16 | 152.4 | 88.7 | 4.5 | 7.7 |
| 178 x 102 UB 19 | 19 | 177.8 | 101.2 | 4.8 | 7.9 |
| 203 x 102 UB 23 | 23 | 203.2 | 101.8 | 5.4 | 9.3 |
| 203 x 133 UB 25 | 25 | 203.2 | 133.2 | 5.7 | 7.8 |
| 203 x 133 UB 30 | 30 | 206.8 | 133.9 | 6.4 | 9.6 |
| 254 x 102 UB 22 | 22 | 254.0 | 101.6 | 5.7 | 6.8 |
| 254 x 102 UB 25 | 25 | 257.2 | 101.9 | 6.0 | 8.4 |
| 254 x 102 UB 28 | 28 | 260.4 | 102.2 | 6.3 | 10.0 |
| 254 x 146 UB 31 | 31 | 251.4 | 146.1 | 6.0 | 8.6 |
| 254 x 146 UB 37 | 37 | 256.0 | 146.4 | 6.3 | 10.9 |
| 254 x 146 UB 43 | 43 | 259.6 | 147.3 | 7.2 | 12.7 |
| 305 x 102 UB 25 | 25 | 305.1 | 101.6 | 5.8 | 7.0 |
| 305 x 102 UB 28 | 28 | 308.7 | 101.8 | 6.0 | 8.8 |
| 305 x 102 UB 33 | 33 | 312.7 | 102.4 | 6.6 | 10.8 |
| 305 x 127 UB 37 | 37 | 304.4 | 123.4 | 7.1 | 10.7 |
| 305 x 127 UB 42 | 42 | 307.2 | 124.3 | 8.0 | 12.1 |
| 305 x 127 UB 48 | 48 | 311.0 | 125.3 | 9.0 | 14.0 |
| 305 x 165 UB 40 | 40 | 303.4 | 165.0 | 6.0 | 10.2 |
| 305 x 165 UB 46 | 46 | 306.6 | 165.7 | 6.7 | 11.8 |
| 305 x 165 UB 54 | 54 | 310.4 | 166.9 | 7.9 | 13.7 |
| 356 x 127 UB 33 | 33 | 349.0 | 125.4 | 6.0 | 8.5 |
| 356 x 127 UB 39 | 39 | 353.4 | 126.0 | 6.6 | 10.7 |
| 356 x 171 UB 45 | 45 | 351.4 | 171.1 | 7.0 | 9.7 |
| 356 x 171 UB 51 | 51 | 355.0 | 171.5 | 7.4 | 11.5 |
| 356 x 171 UB 57 | 57 | 358.0 | 172.2 | 8.1 | 13.0 |
| 356 x 171 UB 67 | 67 | 363.4 | 173.2 | 9.1 | 15.7 |
| 406 x 140 UB 39 | 39 | 398.0 | 141.8 | 6.4 | 8.6 |
| 406 x 140 UB 46 | 46 | 403.2 | 142.2 | 6.8 | 11.2 |
| 406 x 178 UB 54 | 54 | 402.6 | 177.7 | 7.7 | 10.9 |
| 406 x 178 UB 60 | 60 | 406.4 | 177.9 | 7.9 | 12.8 |
| 406 x 178 UB 67 | 67 | 409.4 | 178.8 | 8.8 | 14.3 |
| 406 x 178 UB 74 | 74 | 412.8 | 179.5 | 9.5 | 16.0 |
| 457 x 152 UB 52 | 52 | 449.8 | 152.4 | 7.6 | 10.9 |
| 457 x 152 UB 60 | 60 | 454.6 | 152.9 | 8.1 | 13.3 |
| 457 x 152 UB 67 | 67 | 458.0 | 153.8 | 9.0 | 15.0 |
| 457 x 152 UB 74 | 74 | 462.0 | 154.4 | 9.6 | 17.0 |
| 457 x 152 UB 82 | 82 | 465.8 | 155.3 | 10.5 | 18.9 |
| 457 x 191 UB 67 | 67 | 453.4 | 189.9 | 8.5 | 12.7 |
| 457 x 191 UB 74 | 74 | 457.0 | 190.4 | 9.0 | 14.5 |
| 457 x 191 UB 82 | 82 | 460.0 | 191.3 | 9.9 | 16.0 |
| 457 x 191 UB 89 | 89 | 463.4 | 191.9 | 10.5 | 1707 |
| 457 x 191 UB 98 | 98 | 467.2 | 192.8 | 11.4 | 19.6 |
| 533 x 210 UB 101 | 101 | 536.7 | 210.0 | 10.8 | 17.4 |
| 533 x 210 UB 109 | 109 | 539.5 | 210.8 | 11.6 | 18.8 |
| 533 x 210 UB 122 | 122 | 544.5 | 211.9 | 12.7 | 21.3 |
| 533 x 210 UB 82 | 82 | 528.3 | 208.8 | 9.6 | 13.2 |
| 533 x 210 UB 92 | 92 | 533.1 | 209.3 | 10.1 | 15.6 |
| 610 x 229 UB 101 | 101 | 602.6 | 227.6 | 10.5 | 14.8 |
| 610 x 229 UB 113 | 113 | 607.6 | 228.2 | 11.1 | 17.3 |
| 610 x 229 UB 125 | 125 | 612.2 | 229.0 | 11.9 | 19.6 |
| 610 x 229 UB 140 | 140 | 617.2 | 230.2 | 13.1 | 22.1 |
| 610 x 305 UB 149 | 149 | 612.4 | 304.8 | 11.8 | 19.7 |
| 610 x 305 UB 179 | 179 | 620.2 | 307.1 | 14.1 | 23.6 |
| 610 x 305 UB 238 | 238 | 635.8 | 311.4 | 18.4 | 31.4 |
| 686 x 254 UB 125 | 125 | 677.9 | 253.0 | 11.7 | 16.2 |
| 686 x 254 UB 140 | 140 | 683.5 | 253.7 | 12.4 | 19.0 |
| 686 x 254 UB 152 | 152 | 687.5 | 254.5 | 13.2 | 21.0 |
| 686 x 254 UB 170 | 170 | 692.9 | 255.8 | 14.5 | 23.7 |
| 762 x 267 UB 134 | 134 | 750.0 | 264.4 | 12.0 | 25.5 |
| 762 x 267 UB 147 | 147 | 754.0 | 265.2 | 12.8 | 17.5 |
| 762 x 267 UB 173 | 173 | 762.2 | 266.7 | 14.3 | 21.6 |
| 762 x 267 UB 197 | 197 | 769.8 | 268.0 | 15.6 | 25.4 |
| 838 x 292 UB 176 | 176 | 834.9 | 291.7 | 14.0 | 18.8 |
| 838 x 292 UB 194 | 194 | 840.7 | 292.4 | 14.7 | 21.7 |
| 838 x 292 UB 226 | 226 | 850.9 | 293.8 | 16.1 | 26.8 |
| 914 x 305 UB 201 | 201 | 903.0 | 303.3 | 15.1 | 20.2 |
| 914 x 305 UB 224 | 224 | 910.1 | 304.1 | 15.9 | 23.9 |
| 914 x 305 UB 253 | 253 | 918.4 | 305.5 | 17.3 | 27.9 |
| 914 x 305 UB 289 | 289 | 926.6 | 307.7 | 19.5 | 32.0 |
| 914 x 419 UB 343 | 343 | 911.8 | 418.5 | 19.4 | 32.0 |
| 914 x 419 UB 388 | 388 | 921.0 | 420.5 | 21.4 | 36.6 |
